# GraphQL API

A  GraphQL API including a query UI is available at <https://q.instamint.network>. Currently, the service searches through staging data only and will point to production data soon.

### Asset Query & Schema

{% code overflow="wrap" lineNumbers="true" %}

```graphql
type asset {
    xref: String
    instamint_asset_hashid: String
    algorand_assetid: Int
    explorerurl: String
    created_at: String
    mint_completed_status: Boolean
    mint_requestjson: String
    senderpk: String
    clawbackpk: String
    managerpk: String
    freezepk: String
    asset_name: String
    unit_name: String
    default_frozen: Boolean
    total: String
    parties: party
}

type party {
    owner: String
    client: String
    custodian: String
    issuer: String
}

type Query {
    allAssets: [asset] asset(hashid: String): asset
}
```

{% endcode %}

Sample Query

The following sample query illustrates how GraphQL can be used to query asset data. The below query looks up an asset with hash ID a0517...2195/

{% code title="Query" overflow="wrap" lineNumbers="true" %}

```graphql
query sampleQuery {
  asset(hashid:"4cddb4593e5d6a4ecd38bf86bb00e24fdd419cdbd27903b3b939dab10e60da0c") {
    mint_completed_status
    explorerurl
    xref
    algorand_assetid
  }
}

```

{% endcode %}

{% code title="Results" overflow="wrap" lineNumbers="true" %}

```graphql
{
  "data": {
    "asset": {
      "mint_completed_status": true,
      "explorerurl": "https://testnet.algoexplorer.io/tx/BREN32FCVNV6UBT3ZEGNADHVIFDYY5K22V2AFVYZCQHRJMBLEPSQ",
      "xref": "invoice323",
      "algorand_assetid": 111900776
    }
  }
}
```

{% endcode %}

Access to the GraphQL is available via API or user interfaces, as demonstrated below

<figure><img src="/files/unnVZjqhYwqQNx8SDyBa" alt=""><figcaption><p>GraphQL access via UI at https://q.instamint.network</p></figcaption></figure>

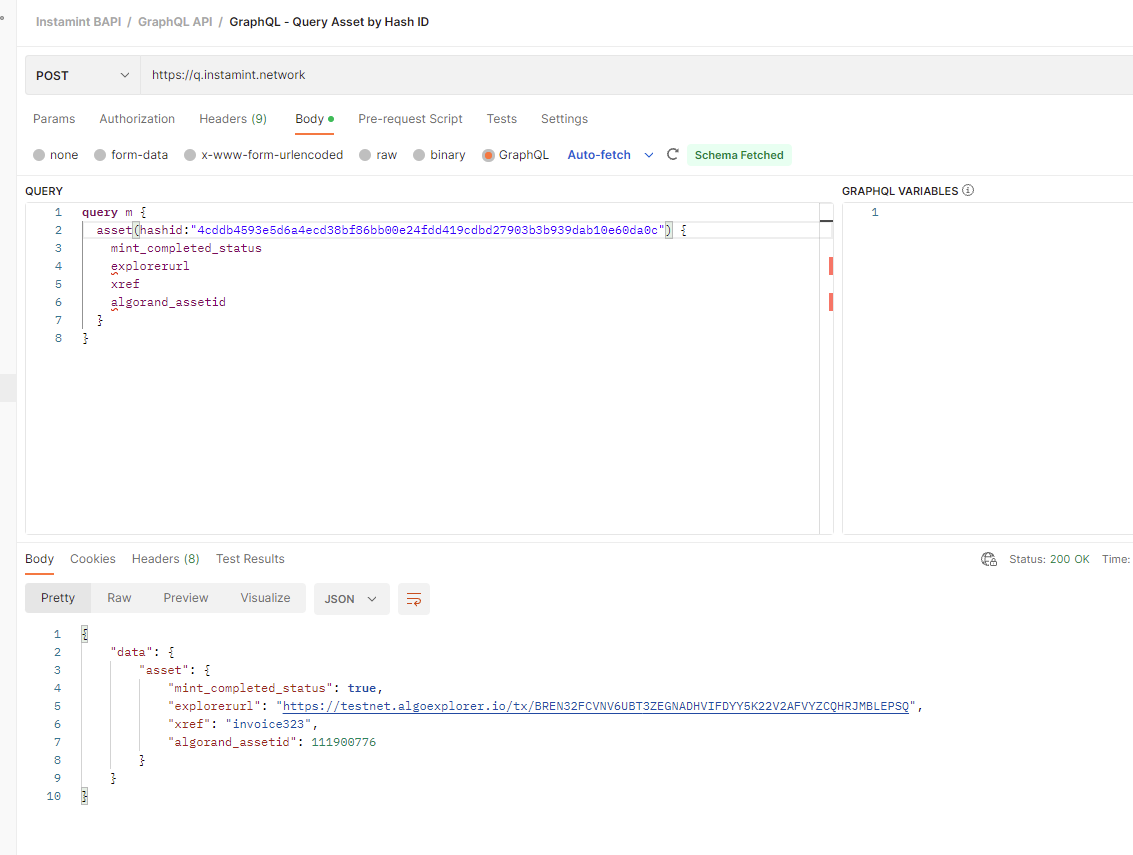

<figure><img src="/files/HLPyIYoNa1Df4atz37mI" alt=""><figcaption><p>GraphQL access via Postman / CURL</p></figcaption></figure>
